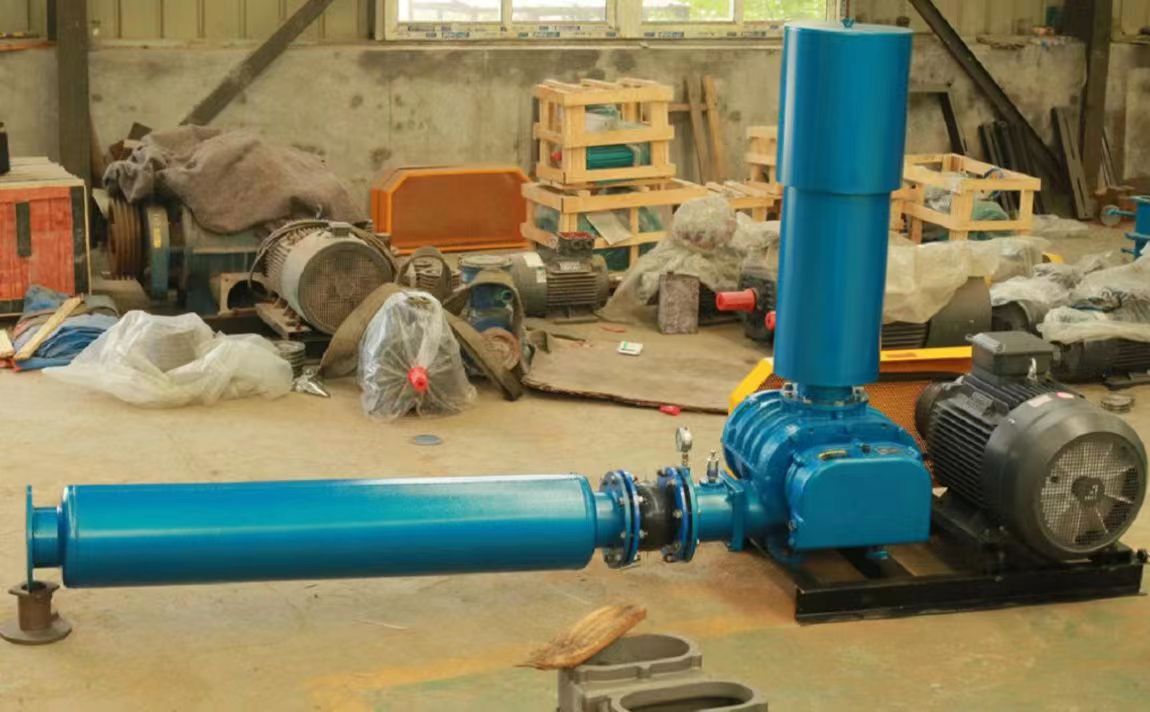

Pneumatic conveying Roots blower is a common fan equipment
Pneumatic conveying Roots blower is a common fan equipment, mainly used for conveying materials such as gas, dust, particles, etc. The following is a detailed introduction to the Roots blower for pneumatic conveying:
1、 Working principle
The Roots blower for pneumatic conveying generates airflow through the rotation of the Roots impeller, thereby achieving material conveying. When the Roots impeller rotates, the gap between the impellers forms a pressure change, allowing gas or material to be transported to the desired position under the action of pressure. This working principle enables the pneumatic conveying Roots blower to continuously complete the material conveying task.
2、 Characteristics and advantages
1. Energy saving: The Roots blower for pneumatic conveying can achieve efficient gas transportation while maintaining low energy consumption, which contributes to energy conservation and environmental protection.
2. Simple structure: Roots blower has a relatively simple structure with fewer components, which makes it easier to maintain and reduces maintenance costs and time.
3. Low noise: Compared with other types of fans, Roots blowers have relatively low noise levels and are more suitable for occasions with noise requirements.
4. Long conveying distance: Pneumatic conveying Roots blower can achieve long-distance material conveying, improving production efficiency.
5. Fast conveying speed: The airflow generated by the fan is fast and can quickly transport materials to the designated location.
6. Not prone to dust generation: During the transportation process, due to the lubricating effect of the airflow, the material is not prone to dust generation, which helps to maintain a clean working environment.
3、 Application scope
Pneumatic conveying Roots blower has a wide range of applications in industrial production, especially suitable for conveying flammable, explosive, toxic, harmful, and highly adhesive materials. Its application areas include but are not limited to:
1. Cement production: Quickly transport bulk cement to the required location.
2. Grain processing: transporting materials such as grains and feed to different storage equipment.
3. Chemical industry: Transport powdered chemical raw materials to mixing equipment or production lines.
4. Mining and Metallurgy: Used for transporting powdered ores and metal powders.
In addition, pneumatic conveying Roots blowers are commonly used in fields such as air purification, conveying of powders and granular materials.
4、 Selection precautions
When choosing a Roots blower for pneumatic conveying, the following factors need to be considered:
1. Flow demand: Determine the required gas flow rate based on the actual application scenario. The flow should have a margin to cope with possible air leakage losses.
2. Boosting requirement: When determining the boosting of the fan, a margin should be left to balance the pressure drop in the system. If the system pressure drop frequently changes during the production process, the pressure drop should be used as the basis to determine the fan's pressure rise.
3. Medium characteristics: Consider the properties of the conveying medium, such as corrosiveness, flammability, and explosiveness, to select the appropriate fan material and sealing type.
4. Installation and maintenance: Consider the installation location and maintenance convenience of the fan to ensure stable operation and ease of daily maintenance.
5、 Maintenance and upkeep
To ensure the long-term stable operation of the Roots blower for pneumatic conveying, regular maintenance and upkeep are required
1. Regular inspection: Check whether all components of the fan are intact and whether the fasteners are loose.
2. Lubrication and maintenance: Regularly replace the lubricating oil according to the instructions to ensure the normal operation of the lubrication system.
3. Cleaning the fan: Regularly clean the fan casing and air inlet to keep the inside of the fan clean.
4. Check the transmission system: Check the wear of transmission components and replace severely worn parts in a timely manner.
In summary, the Roots blower for pneumatic conveying has been widely used in multiple industrial fields due to its energy-saving and environmentally friendly characteristics. When selecting and maintaining, it is necessary to make reasonable choices and maintenance based on actual needs and working environment.
