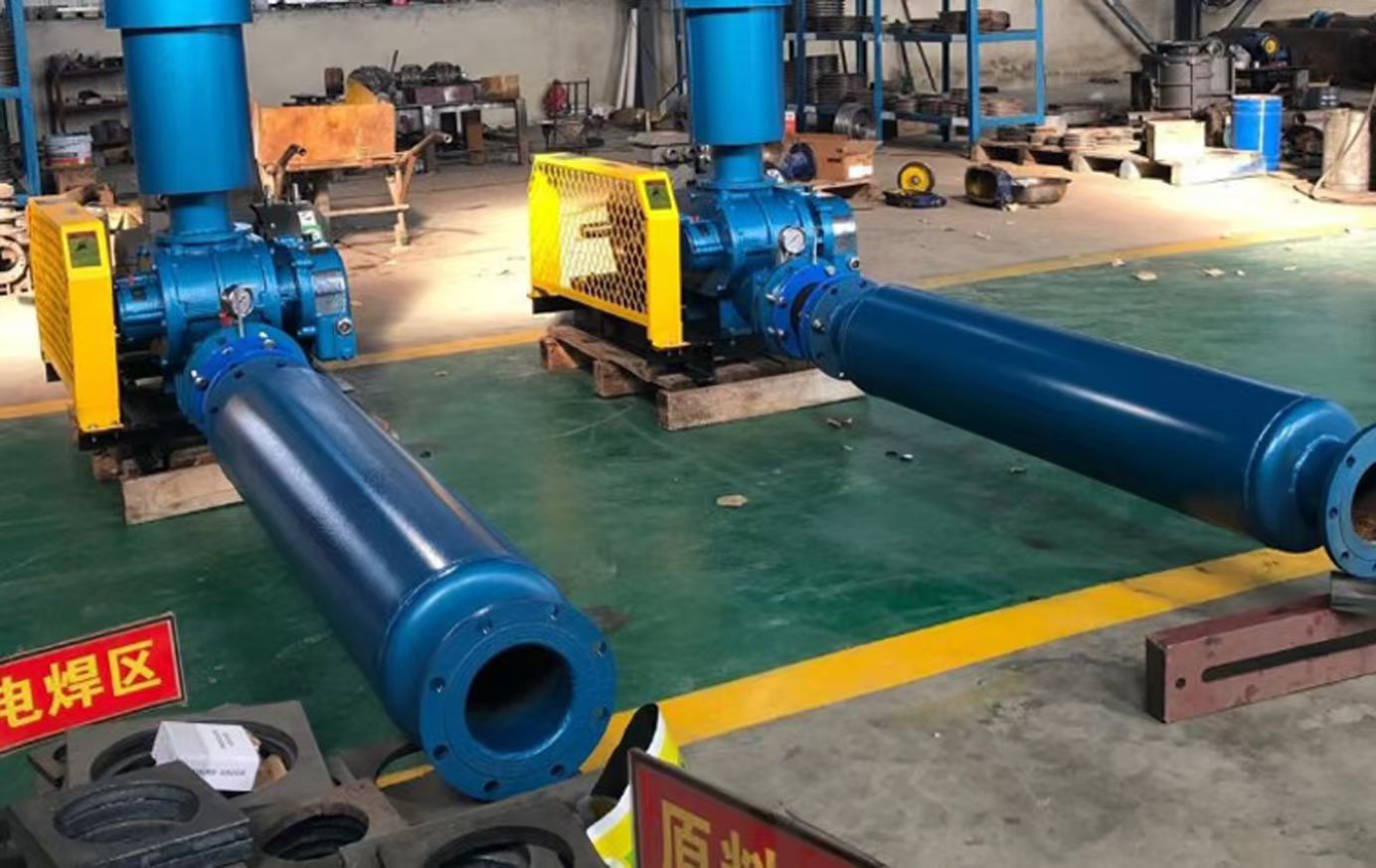

Roots Three Leaf Fan, also known as Three Leaf Roots Fan, is a type of positive displacement blower. Here is a detailed introduction to it:
1、 Structural characteristics
The three leaf Roots blower consists of the main parts such as the casing, wall panels, impeller, inlet and outlet mufflers, bearing seat, and sealing components. Each three bladed rotor is supported by two bearings and a pair of synchronous gears are used to maintain the relative position of the two rotors constant. Its internal structure is precise, with small gaps maintained between each component to ensure no friction in the working chamber and extend its service life.
2、 Working principle
The working principle of a three bladed Roots blower is based on the relative rotation of two three bladed rotors driven by synchronous gears. During the rotation process, the working chamber volume formed between the two rotors and the casing constantly changes, thereby achieving gas suction, compression, and discharge. Due to the special design of the three bladed rotor, the fan has low gas pulsation, vibration, and noise during operation.
3、 Performance advantages
1. Energy saving: The three blade Roots blower has the characteristics of high volumetric efficiency, simple structure, and easy use and maintenance, which makes it consume less energy during operation and has significant energy-saving effects.
2. Smooth operation: Due to the use of a three bladed rotor structure and a reasonable structure at the inlet and outlet of the casing, the fan has low vibration, low noise, and runs smoothly and reliably.
3. Economical and durable: Three leaf Roots blower does not require internal lubrication and has a long service life. Meanwhile, its structure is simple, easy to maintain and upkeep, reducing the cost of use.
4. Strong adaptability: Three leaf Roots blower can be widely used in many fields such as petrochemicals, building materials, electricity, smelting, fertilizers, mining, ports, textiles, food, papermaking, aquaculture and sewage treatment, environmental protection industry, etc. It can not only be used for transporting air, but also sealed for transporting flammable, explosive, and corrosive gases such as gas, hydrogen, acetylene, carbon dioxide, etc.
4、 Troubleshooting and Maintenance
During the use of a three blade Roots blower, faults such as insufficient air flow, motor overload, and high temperature may be encountered. Corresponding troubleshooting measures need to be taken for these faults, such as checking whether the inlet filter is clogged, whether the system has leaks, whether there is friction between static and dynamic parts, etc., and repairing them in a timely manner. At the same time, in order to ensure the normal operation and extend the service life of the fan, regular maintenance and upkeep are also required, including cleaning the dust and debris inside the fan, inspecting and replacing severely worn parts, and regularly lubricating the fan.
In summary, the Three Leaf Roots blower has been widely used in various fields due to its energy-saving, stable operation, economic durability, and strong adaptability. During the selection and use process, it is necessary to fully consider factors such as material characteristics, conveying distance and height, and working environment to ensure the performance and reliability of the fan. At the same time, regular maintenance and upkeep are also key to ensuring the normal operation and extending the service life of the fan.
