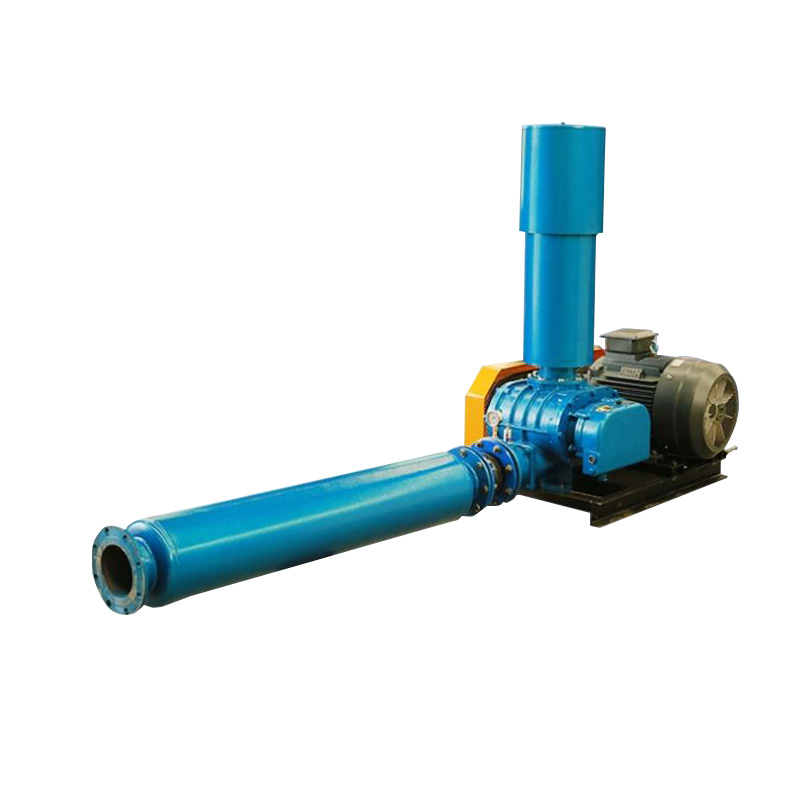

The repair of a three blade Roots blower is a process involving multiple steps and details. Here is a detailed repair guide:
1、 Inspection and Diagnosis
1. Observe the operating condition: When the fan is running, pay attention to its sound, vibration, temperature and other parameters to preliminarily determine the type and location of the fault.
2. Shutdown inspection: After shutdown, conduct a detailed inspection of various components of the fan, including impellers, bearings, seals, filters, etc. Check whether the impeller is worn or deformed, whether the bearings are damaged, whether the seals are aged or damaged, and whether the filter is clogged.
2、 Disassembly and cleaning
1. Disassemble components: Disassemble the fan into various parts according to its structural characteristics. During the disassembly process, be careful to handle with care to avoid damaging the components.
2. Cleaning components: Clean the disassembled components to remove oil stains, dust, and impurities. When cleaning, it is important to use appropriate cleaning agents and tools to avoid damaging the components.
3、 Replace damaged components
1. Replace worn parts: Based on the inspection results, replace worn or damaged parts such as impellers, bearings, seals, etc. During the replacement process, it is important to ensure that the model and specifications of the new component are consistent with those of the original component.
2. Adjust clearances: Check and adjust clearances between impellers, impellers and wall panels, impeller tops and casings, and other components. Ensure that the gap is within the specified range to ensure the normal operation and performance of the fan.
4、 Assembly and Adjustment
1. Assembly components: After replacing the components, assemble them in the reverse order of disassembly. During assembly, attention should be paid to the assembly position and sequence of each component to avoid deviations.
2. Adjusting the fan: Adjust the assembled fan, including the balance of the impeller, the clearance of the bearings, etc. Ensure that the fan runs smoothly without vibration and that the coordination between various components is good.
5、 Trial operation and inspection
1. Trial operation of fan: After assembly and adjustment, conduct a trial operation. Observe whether the fan runs smoothly, without any abnormal sounds or vibrations.
2. Check sealing and temperature: During the trial operation, check the temperature and sealing condition of each component. Ensure that the temperature and sealing condition of each component of the fan meet the requirements under normal operation.
6、 Maintenance and upkeep
1. Regular inspection: Regularly inspect the Roots blower, including the wear and tear of components such as impellers, bearings, and seals. Identify problems and handle them promptly to prevent the malfunction from escalating.
2. Cleaning and maintenance: Keep the Roots blower clean and regularly clean the dust and debris inside the blower. Lubricate and maintain easily worn components such as bearings to extend their service life.
3. Operating procedures: When operating the Roots blower, follow the operating procedures and requirements. Avoid overloading and overspeed operation to ensure that the fan operates in a suitable environment.
matters needing attention
1. Professional operation: Professional tools and equipment are required during the maintenance process, and maintenance personnel need to possess professional knowledge and skills.
2. Operation: Operators should be familiar with the structure and working principle of the fan, strictly follow the operating procedures, and avoid accidents caused by improper operation.
By following the above steps and precautions, it is possible to effectively repair and maintain the Three Leaf Roots blower, ensuring its long-term stable operation. At the same time, it can also improve the efficiency and performance of the fan, reduce the failure rate and maintenance costs.
