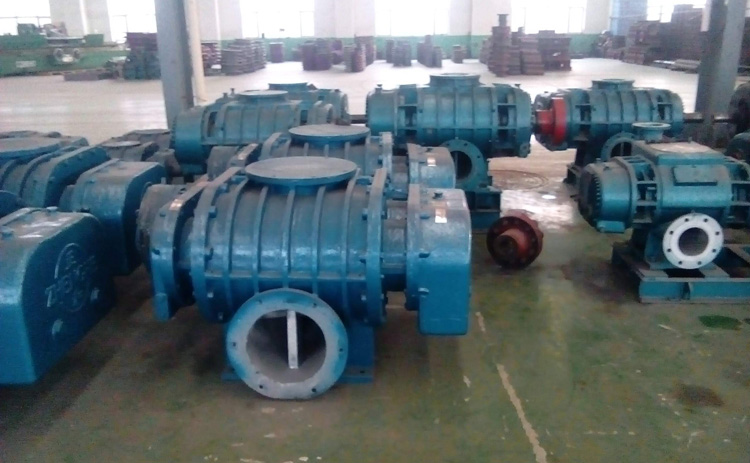

A specialized Roots blower for pneumatic conveying is a common fan equipment used specifically for conveying materials such as gases, dust, and particles. The following is a detailed introduction to the Roots blower for pneumatic conveying:
1、 Working principle
The working principle of the Roots blower for pneumatic conveying is to generate airflow through the rotation of the Roots impeller, thereby achieving material conveying. When the Roots impeller rotates, the gap between the impellers forms a pressure change, allowing gas or material to be transported to the desired position under the action of pressure.
2、 Application scope
The Roots blower for pneumatic conveying has a wide range of applications in industrial production, especially suitable for conveying flammable, explosive, toxic, harmful, and highly adhesive materials. It is mainly used in the transportation, pressure, air purification and other fields of powder and granular materials, and can also be used in industries such as cement, building materials, chemical industry, metallurgy, grain, storage and transportation, and environmental protection.
3、 Main features
1. Energy saving: The Roots blower for pneumatic conveying adopts advanced design and technology, and has energy-saving characteristics. During operation, it can reduce energy consumption and lower operating costs.
2. Stable and reliable: The fan has a compact structure, operates smoothly, produces low noise, and has minimal vibration. At the same time, high-quality materials and advanced manufacturing processes are used to ensure the stability and reliability of the fan.
3. Easy to maintain: The design of the Roots blower for pneumatic conveying is easy to maintain and repair. When disassembling and replacing components, there is no need for complex operations, reducing maintenance difficulty and costs.
4. Strong adaptability: This fan can adapt to different working environments and material characteristics. By adjusting the parameters and configuration of the fan, different customer needs can be met.
4、 Technical parameters
The main technical parameters of the Roots blower for pneumatic conveying include air volume, air pressure, speed, shaft power, and exhaust temperature. The selection of these parameters needs to be determined based on actual conveying requirements to ensure the performance and efficiency of the fan.
1. Airflow: refers to the actual amount of gas flowing into the Roots blower per unit time, commonly measured in m3/min. In pneumatic conveying, the size of the air volume directly determines the conveying capacity.
2. Wind pressure: refers to the gas pressure at the outlet of the fan, commonly measured in kPa or mmHg. The magnitude of wind pressure affects the flow rate and transportation distance of gas.
3. Rotational speed: refers to the number of revolutions of the active shaft of a Roots blower per unit time, commonly measured in r/min. The speed directly affects the air volume and pressure of the fan.
4. Shaft power: refers to the power transmitted from the prime mover to the main shaft of the Roots blower per unit time under flow rate and head. The magnitude of shaft power determines the energy consumption and efficiency of the fan.
5. Exhaust temperature: refers to the temperature of the gas at the outlet of the Roots blower. The high or low exhaust temperature will affect the stability and performance of the conveying system.
5、 Maintenance and upkeep
In order to ensure the long-term stable operation of the specialized Roots blower for pneumatic conveying, regular maintenance and upkeep are required
1. Regular inspection: Regularly inspect the fan, including the wear and tear of components such as impellers, bearings, and seals. If severely worn or damaged components are found, they should be replaced in a timely manner.
2. Cleaning and lubrication: Regularly clean the dust and impurities inside the fan to keep it clean. At the same time, lubrication and maintenance should be carried out on components such as bearings to extend their service life.
3. Adjust parameters: Adjust the parameters and configuration of the fan according to actual needs to meet different conveying requirements.
4. Attention: During maintenance and upkeep, pay attention to the operation to avoid accidents.
In summary, the specialized Roots blower for pneumatic conveying has the characteristics of energy saving, stability and reliability, easy maintenance, and strong adaptability. In industrial production, it plays an important role and provides strong support for material transportation.
